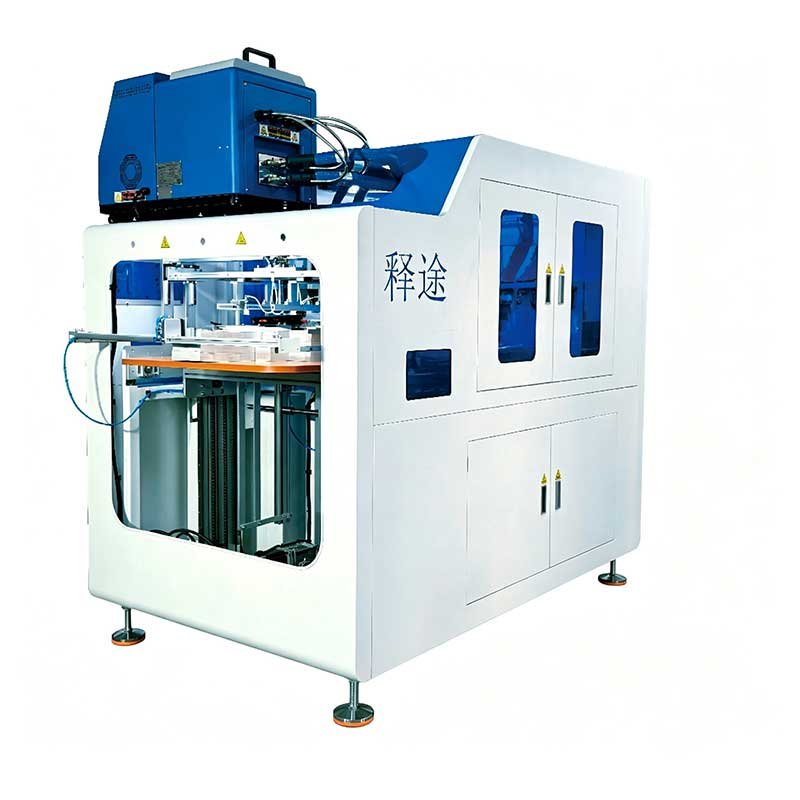

Single-Station Box Folding Machine

Single-Station Box Folding Machine

The single-station box folding machine is an automated device that completes feeding, folding, forming, bottom locking/gluing, and unloading sequentially at a single workstation. It has a compact structure, is easy to debug, and is suitable for small to medium batch production of paper boxes of various specifications.

Description

The core working principle of a single-station box folding machine is to use a PLC automated control system, combined with mechanical structure and sensing devices, to sequentially feed, position, fold, and form (glue/lock) flat cardboard and output it. The entire folding process is completed in a single station, and the compact structure is suitable for small and medium batch production.

Whatever your single-station box folding machine needs, we can satisfy them! Contact us today to discuss your needs.

Product Features & Benefits

uses PLC control and touch screen operation. The touch screen is movable for convenient operation.

The entire machine has a compact structure and occupies minimal space.

Uses a lifting platform for material placement, with a total loading height of 0.6 meters.

This equipment has a normal operating feed interval of 40_50 minutes.

Forming station with longitudinal servo control, adjustable by input parameters.

Product Specifications

Speed: 17-23 per minute

Formed Box Dimensions : L100-400MM*W80-350MM*H18-100MM

MateriaIs suitabIe for This Machin: 210 _ 350g White cardboard, Kraft paper, etc

Technical Data Sheets

Item	Dimensions	ModeI	DTKH4350
Material Dimensions (Length L * Width W)	L MIN 220mm	Speed	Long Edge Does Not press short Edge	17 – 23 per minute
	L MAX 700mm		Long Edge presses Over Short Edge
	W MIN 200mm
	W MAX 680mm	Machine Dimensions(LWH)	3800mm x 1600mm x 2000mm (including conveyor belt)
Formed Box Dimensions	L MIN 100mm	Rated power	5KW
	L MAX 400mm	Rated Voltage	220V
	W MIN 80mm	Air suppIY	0.5_0.7Mpa
	W MAX 350mm	MateriaIs suitabIe for This Machine	210 _ 350g White cardboard, Kraft paper, etc
	H MIN 18mm	operator (1 person)	Feeding IntervaI: 40 _ 50 minutes
	H MAX 100mm

Application

FAQ

What types of cartons can this machine process?

It works for auto-lock bottom cartons, glued bottom boxes, airplane boxes, pizza boxes, gift boxes and regular packaging cartons. Customization for special box styles is available.

Is this machine suitable for small and medium production runs?

Yes. It features compact structure, quick size changeover and moderate speed, ideal for small-batch, multi-style production.

What is the difference between single-station and multi-station folding machines?

Single-station model takes less floor space, costs lower and changes box sizes faster, with speed 10–25 pcs/min for small/medium orders. Multi-station machines run faster for mass production but have larger footprint and higher price.

Is it easy to operate? Do we need professional technicians?

Equipped with PLC and touch screen, simple operation. One ordinary worker can operate it after short training (about 30 minutes). Manual & automatic modes are optional.

What is the daily maintenance work?

Regularly clean dust and paper scraps, lubricate moving parts periodically, check air pipes and circuits. Daily maintenance takes only a few minutes.
